6.65kW Solar And 40kWh Battery System Installation in Point Cook Home
For this Point Cook homeowner, the objective was to build a more efficient and energy-independent home by combining 6.65kW solar PV system with substantial 40kWh battery storage, with an estimated annual solar production of 8,534kWh.
This system is expected to deliver approximately $1,159.53 in annual energy savings. Eligible solar and battery STCs provide $7,550 in government incentives, helping reduce the overall upfront investment while improving the home’s long-term energy solutions.
Solar & Battery System Specifications — Point Cook Installation
Our SSA-certified installation team designed and installed an integrated solar and battery system combining 14 solar panels with a GoodWe inverter and battery technology. The system is grid-connected, allowing the home to generate, store and use renewable energy efficiently while reducing reliance on grid electricity.
| Installation Details | Specification |
| Solar Panels | Trina Solar TSM-475NEG9RH.28 |
| Solar Capacity | 14 Panels | 6.65kW Total Capacity |
| Battery Storage | GoodWe GW8.3-BAT-D-G20 |
| Battery Capacity | 5 Units | 40kWh Usable | 41.6kWh Nominal |
| Inverter | GoodWe GW9.999K-EHA-G20 | AS4777-2:2020 |
The battery system is also VPP-capable, providing the potential to participate in Virtual Power Plant programs and optimise energy use, storage and grid interaction.
Based in Altona and serving homes within an 80 km radius, Green Electric Solutions helps you reduce the upfront cost of solar with eligible government rebates.
Save $7,550 With Eligible Solar & Battery Government Incentives
Government incentives played an important role in reducing the upfront cost of this solar and battery installation. Most importantly, rebate eligibility and incentive values vary by system, property and applicable program requirements, so homeowners should have their eligibility assessed individually rather than assuming the same incentive amount; however, in this case the total rebates are
| Government Rebates | |
|---|---|
| 39 STCs 7 × $38.00 | −$1,482.00 |
| 164 Battery STCs 7, 8 × $37.00 | −$6,068.00 |
| Total Rebates | $7,550.00 |
The system is estimated to produce 8,534 kWh annually, with projected energy savings of approximately $1,159.53 per year.

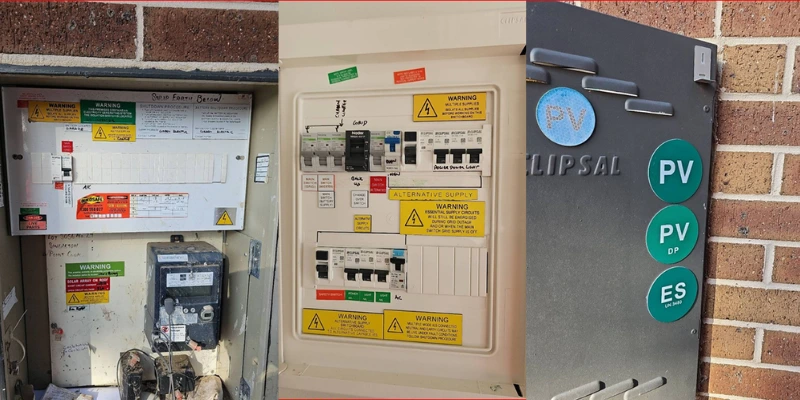

Point Cook Solar Installation: Switchboard, Isolation & Safety Compliance Done Right
The electrical work included a complete switchboard upgrade to safely integrate the new solar and battery system. A dedicated Clipsal enclosure was installed with clearly labelled circuits for PV, PV DP (DC isolation), and ES (battery energy storage), along with EV-ready provisions for future charger integration.
The main distribution board was upgraded with new circuit breakers, isolators and compliant solar and battery warning signage. A secondary sub-board was also installed with dedicated battery isolation switches and system labeling. The meter box was upgraded with a digital smart meter to support accurate solar export and energy consumption monitoring, delivering a compliant, inspection-ready installation.
A Trusted Solar & Battery Installer in Point Cook - Green Electric Solutions
Looking for a reliable solar installer in Victoria? Green Electric Solutions delivers professionally designed solar and battery systems tailored to each home’s energy needs. This Point Cook project demonstrates our approach, combining 6.65kW of Trina solar, 40kWh of GoodWe battery storage and a grid-connected inverter. Speak with our experienced team to explore your solar options, available incentives, and a system designed for long-term energy savings.
Why most Victorians choose Green Electric Solutions:
- REC Certified Solar Professionals
- Solar Victoria Approved
- NET Approved
- End-to-end rebate application support
- SAA-Certified Installers
Why This 6.65kW Solar & 40kWh Battery System Suits Point Cook Homes

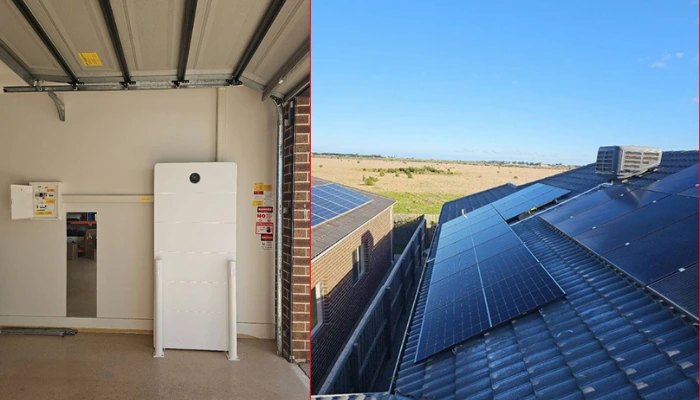

This Point Cook home features an integrated 6.65kW solar and 40kWh usable battery system, designed to improve energy generation, storage and flexibility. The installation uses 14 Trina Solar TSM-475NEG9RH.28 panels, each rated at 475W, paired with a GoodWe GW9.999K-EHA-G20 inverter and five GoodWe GW8.3-BAT-D-G20 battery units.
Trina Solar And GoodWe Battery System Designed For Greater Energy Independence
The batteries provide 40kWh of usable storage from 41.6kWh nominal capacity, allowing more solar energy to be stored for later household use. The system is grid-connected and VPP-capable, providing potential access to suitable virtual power plant programs where eligible. Together, the Trina panels, GoodWe inverter, and high-capacity battery storage create a professionally integrated residential energy solution tailored to greater solar utilization and energy independence.
