32.61kWh FoxESS Battery With 10kW Inverter Installation in Clyde
Solar has a timing problem. Panels peak around midday. Household demand peaks in the morning and evening. Your rooftop solar makes most of its power while you're at work. Your home uses most of it after dark. That gap is where your savings leak away. In Clyde’s home, Green Electric Solutions closed it with a 32.61kWh FoxESS battery and a 10kW FoxESS KH10 inverter. After 157 Battery STCs, the project cost fell from $12,808 to $6,999. This case study covers the FoxESS system, installation, compliance, electrical integration, and benefits.
How We Sized the FoxESS Battery for This Clyde Home
After meeting with the client, our team conducted an on-site assessment to understand the home’s energy demand and determine the battery capacity required. The system was sized to capture surplus solar energy that would otherwise be exported to the grid, allowing the homeowner to store it and use it during the evening. The battery is also VPP-capable, providing readiness for participation in eligible Virtual Power Plant programs.
| Component | Installed Specification |
|---|---|
| Battery | FoxESS EQ4800-L7 |
| Battery Capacity | 32.61 kWh (32.61 kWh usable) |
| Inverter | 1 × FoxESS KH10 |
| Inverter Output | 10 kW / 10,000 W |
| Phase | Single phase |
| Grid Connection | Grid-connected |
| VPP Capability | Yes |
Save $5,809 With Battery STCs On This Clyde Installation
The financial benefit of battery installation can be significant. To encourage the transition to cleaner energy, Australian government programs provide incentives that can reduce the upfront cost of eligible solar and battery systems. Battery STC incentives depend on system size, eligibility, and installation timing. The rebate shown here is specific to this Clyde project; your final incentive should be confirmed for your property and installation date. For this Clyde project, the applicable rebates and incentives were
| Rebate | Amount |
|---|---|
| 157 Battery STCs × $37.00 | −$5,809.00 |
| Subtotal incl. GST | $12,808.00 |
| Total incl. GST | $6,999.00 |
Green Electric Solutions, are Altona, base provides professional solar installation services across Victoria and surrounding areas within an 80 km radius.
How This Clyde Battery Installation Meets Safety and Compliance Requirements

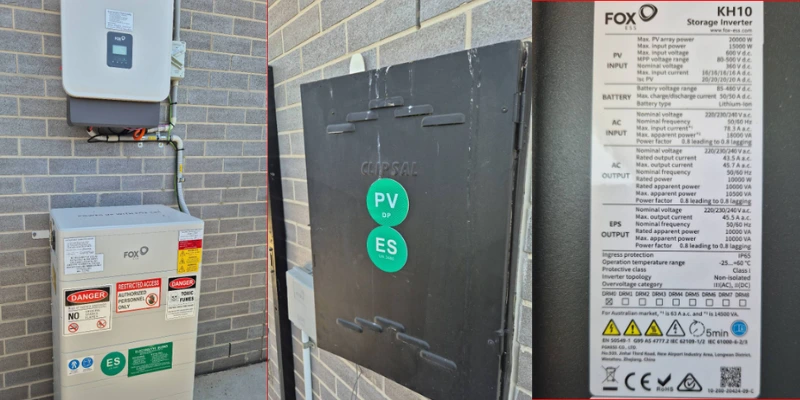

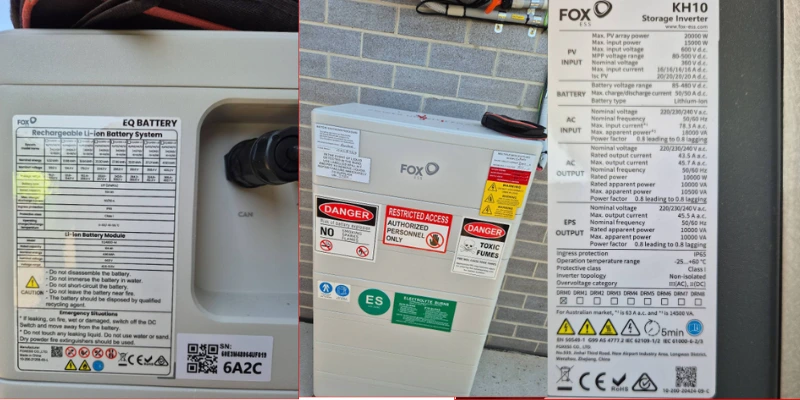

The Clyde installation was designed and commissioned by Mahdi Horiyat Pajooh (SAA S7646693, electrical licence A55500). The system includes compliant PV/energy-storage labelling, clearly marked isolation switches, safety warnings, and shutdown instructions.

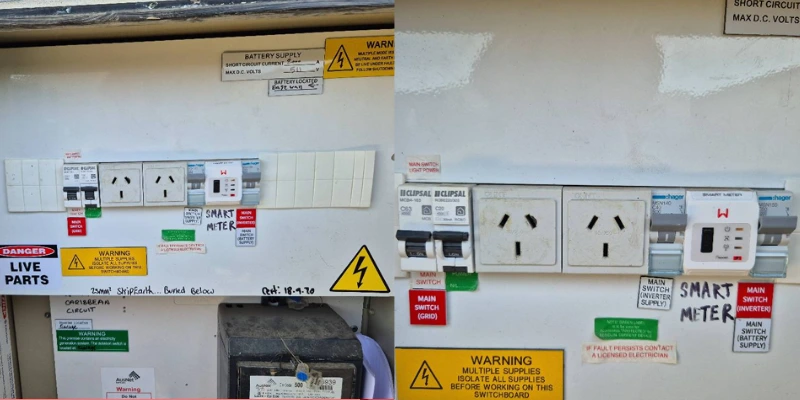

The inverter meets approved equipment requirements, while installer and designer declarations were completed under Solar Accreditation Australia requirements. AusNet-specific switchboard labelling was also applied, documenting the installation’s network and safety compliance.
Why Clyde Homeowners Choose Green Electric Solutions
Green Electric Solutions delivers end-to-end solar installations designed around your home’s energy needs. From system design and product selection to installation, electrical integration, compliance, and commissioning, our team manages every stage of the process. We focus on getting the technical details right, ensuring your system is installed safely and configured for reliable performance. Whether you’re upgrading an existing solar system or adding battery storage, we help make the transition to smarter energy simple and straightforward.
Why Choose Green Electric Solutions:
- REC-Certified Solar Professionals
- SAA-Certified installers
- Solar Victoria Approved
- End-to-end rebate application support
- NET Approved
- GoodWe Approved Solar Installer in Melbourne
- Experienced with end-to-end rebate documentation
- Committed to Australian electrical and safety standards
Ready To Store More Solar Energy? Request Your Battery Quote
Already have solar? Adding the right battery and inverter can help you store surplus solar energy and use it when your home needs it most, rather than exporting it to the grid.
Green Electric Solutions provides professionally designed and installed battery storage systems across Melbourne, with CEC accreditation and Solar Victoria approval.
